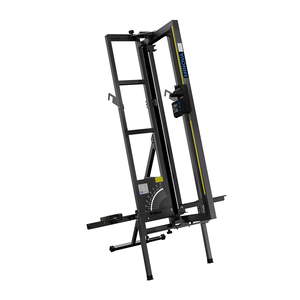

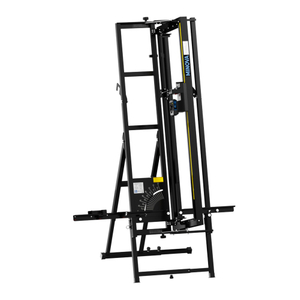

KD-5520 Cordless Battery Insulation Cutter for Mineral Insulating Materials

Universal cutting device for professional use in insulating materials, such as rock wool, mineral wool, glass wool, polyurethane plates and foam rubber etc.
Availability:
Quantity:
  • KD-5520

  • Canty

Video:

Application

1. Brushless motor, longer duration.

2. Pure freedom of movement without power cable limit.

3. The vertical wire allows cutting 1280 cm long and 340 mm thick.

4. The horizontal wire allows all forms of cutting.

5. Double support surface with inclination option.

6. Brake arm releases your hands to cut perfectly.

7. Wide side supports with both sides adjustable miter angle and scale.

8. Can be pushed together to a compact size and then packed in a convenient case for transportation.


Technical Data:


Product Model: KD-5520
Max. Cutting Length:  1280 mm
Cutting Thickness: 340 mm


Slope Cutting in Two Directions:

X-axis  45 °
X-axis  45 °
Net Weight (Main Machine): 25 kg
Machine Size:  1770/760/185 mm
Battery 18 V/ 2.0 Ah
Battery Charger: Input 100-240 V AC, Output 16.8 V DC/ 1.7 A
Vibration Frequency 1650 times/min


Basic Kit

KD-5520 Main Machine

Battery

Charger

Aluminum Box


Cutting Shapes:
