KD-51E
MINOVA
Application

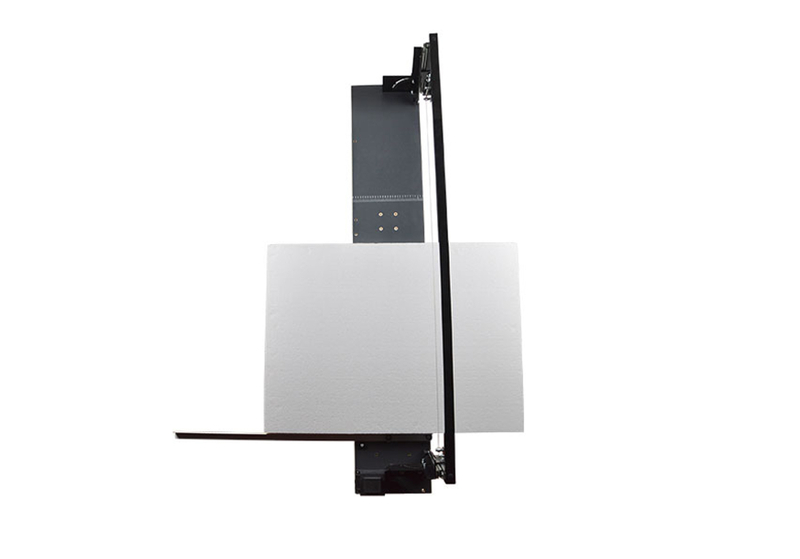

· Hot wire cutting machine is for cutting Styrofoam and similar insulating materials.
· Everywhere in-door, mobile applicable, on a table, rack, in the facade or on the scaffolding.
· The hot wire cutter can cut foam board at all dimensions actually, cleanly and easily.

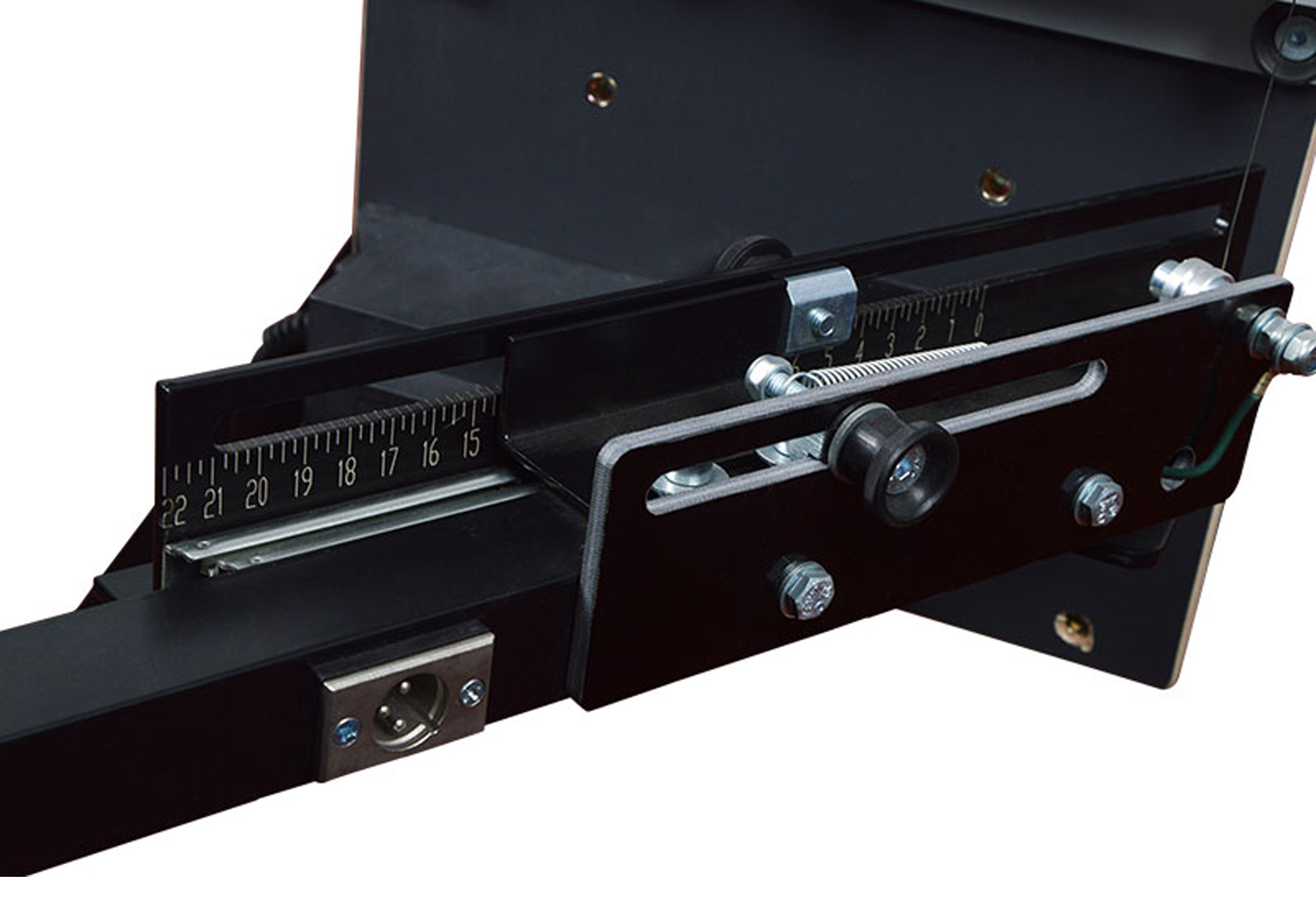

· He has ball-stored side elements.
Technical Data:
| Model Number | KD-51E-1070 | KD-51E-1370 |
| Max. Cutting Length | 1070mm | 1370mm |
| Max.Cutting Height | 330mm | 330mm |

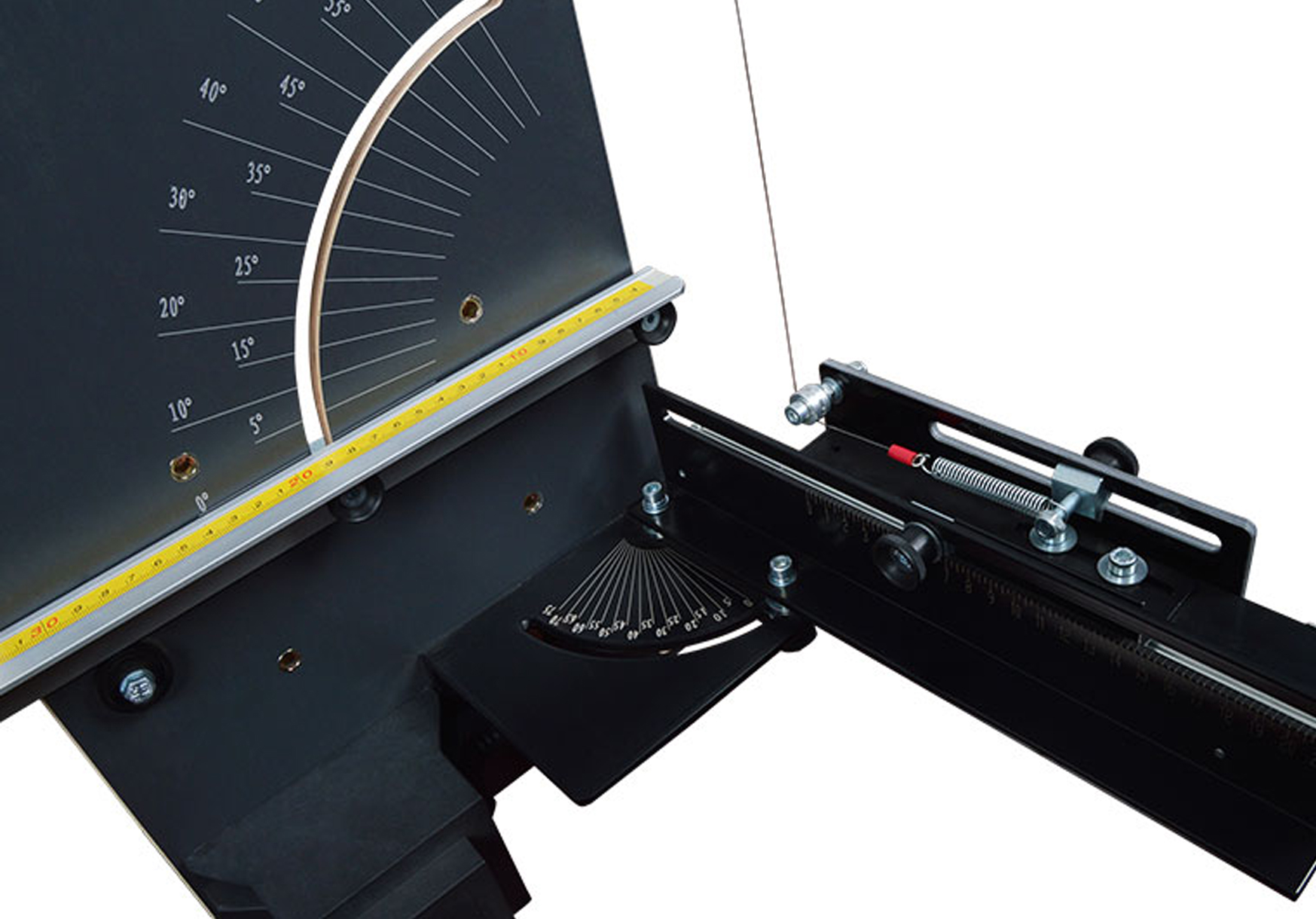

| Guider Ruler | 800mm; 0-90º | 1000mm; 0-90º |
| Weight | 15.2Kg | 16.8Kg |
| Carton Size | 1400X430X170mm | 1700X430X170mm |
| Transformer | 36V/160W/230V IP44 Thermostat built inside | 40V/200W/230V IP44 Thermostat built inside |
Basic Kit
KD-51E completely mounts
Hot wire
Carton box packing
Cutting shape:
