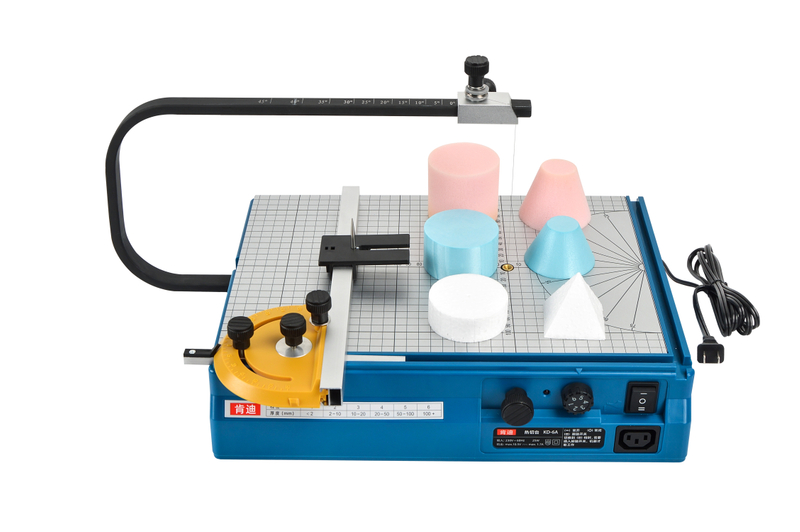

KD-6A& KD-6D Hot Wire Foam Cutter

About our new product, we have Hot Wire Foam Cutter KD-6A and Battery Hot Wire Cutter KD-6D.
The biggest difference of these two version is battery. Cordless design is more convenient.
Availability:
Quantity:
  • KD-6A& KD-6D
  • Canty
  • KD-6D.pdf

Hot Wire Foam Cutter



Battery is the biggest difference between the two version. Cordless design is more convenient.


Technical Data

Product Model:                                        KD - 6A

Voltage:                                      230 V, 50 Hz ( 110 V, 60 Hz), Max. 10.5 V

Power Input:                                          Max. 25 W

Power Cord Length:                            2.8 m

Dimensions of Work Surface:      370 x 260 mm

Wire Length:                                         5 m

Weight:                                                  3.6 kg

Cutting Height:                                      Max. 140 mm


Technical Data

Product Model:                                      KD - 6D

Voltage:                                    DC 14.4 V, Max. 10.5 V

Power Input:                                        Max. 25 W

Secondary Current:                            Max.1.7 A

Dimensions of Work Surface:    370 x 260 mm

Weight:                                               3.26 kg

Max. Cutting Height:                 140mm

Charging Time:                                   Approx. 90 mins



Basic Kit ( KD-6A ):

Cutting Table

Overarm

Circle Cutting Attachment

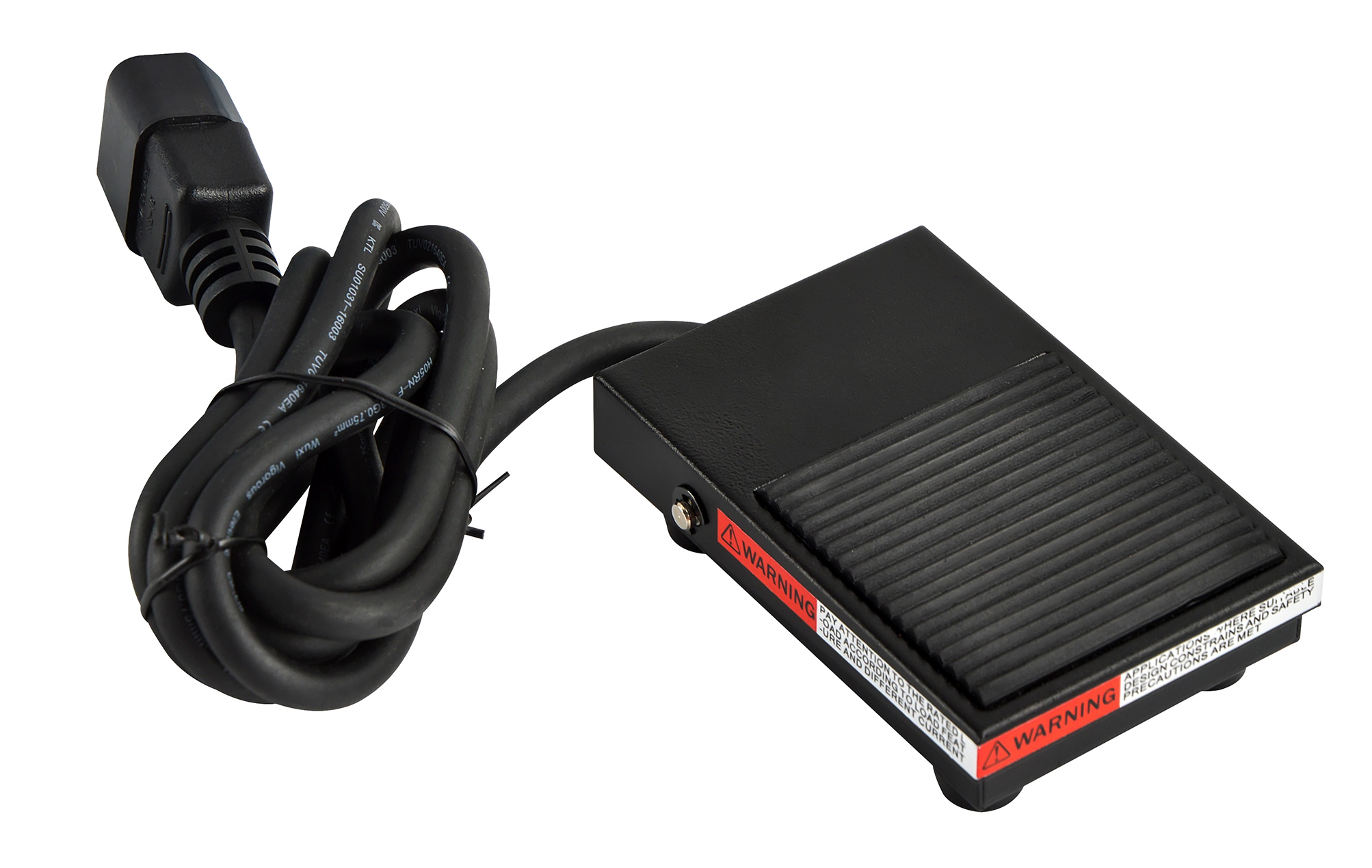

Foot Pedal

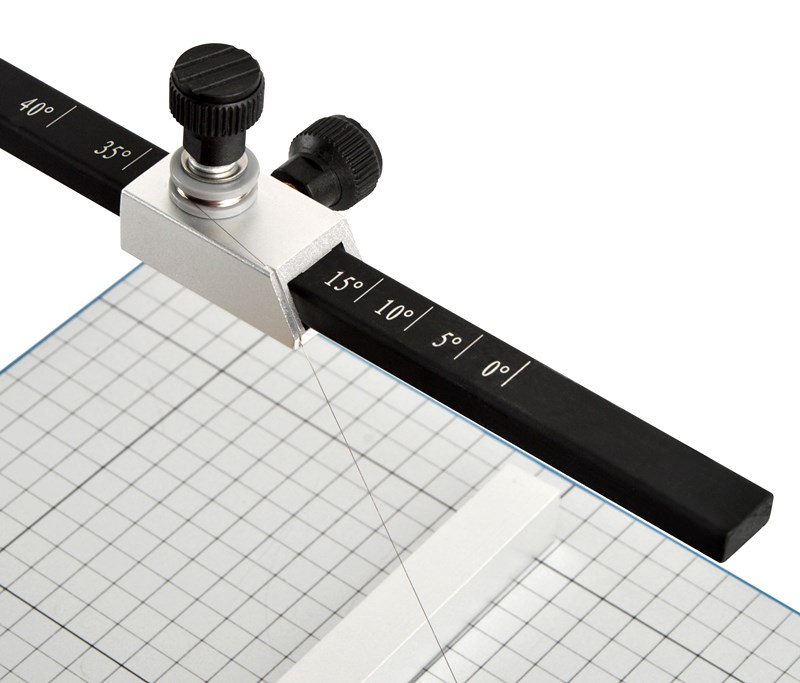

Angle Gauge

Extension Rail

Spool Carrier

A Roll of Hot Wire5 m


Basic Kit ( KD-6D ):

Cutting Table

Circle Cutting Attachment

Foot Pedal

Angle Gauge

Extension Rail

Spool Carrier

A Roll of Hot Wire

Battery and Battery Charger


Cutting Types:

1. Miter Cutting

2. Parallel Cutting

3. Small Sections of long profiles

4. Cylindrical Cutting and Conical Cutting
