KD-7X
MINOVA
230V/50Hz
320W
Model：KD-7X
· KD-7X is Continuously Operated Hand-Hold Hot Knife with Air-cooling System,
mainly for cutting EPS/XPS foam board.
· The temperature can reach up to 500℃ in Seconds.
· KD-7X is 2 Times Faster than all of existing hot knife for cut EPS foam board.
· You can do easy and effortless cutting by adjusting the temperature knob.
Technical Data:
| Input Voltage | AC 230 V 50 Hz |
| Output power | Max.320 W |
| Weight | 610 g |
| Length | 320 mm |
| Max.Temperature | 500 ℃ |
| Max.Cutting Depth | 250 mm (Standard Kit) |
| Power Cord Length | 3.0 m |
| Adjusting Knob | 16 steps |
| Continuous Operation 24 Hours Continuously Operation, Not intermittent | |
(Air-cooling Hot Knife with 20cm blade for cutting EPS/XPS)
EPS foam board | XPS foam board | |
Cutting Length | 100cm | 100cm |
Foam Thickness | 20cm | 20cm |
Foam Density | 15Kgs/M⊃3; | 32Kgs/M⊃3; |
Cutting speed (Inc.preheating time) | 32 seconds | 52 seconds |

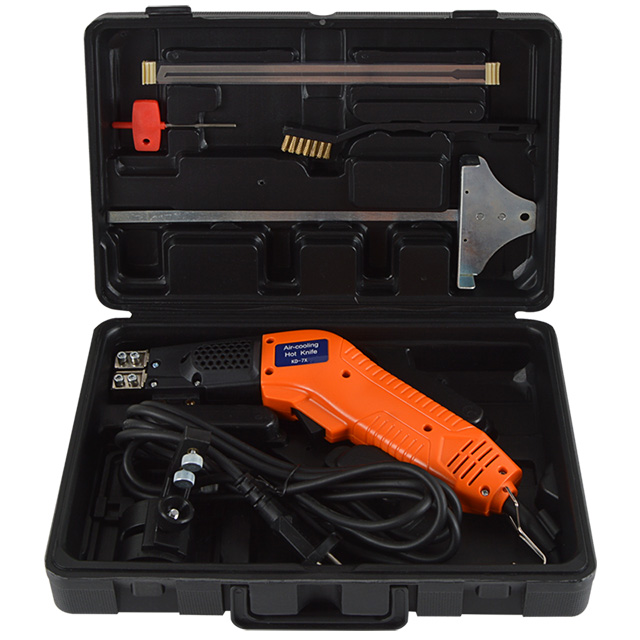

Basic Kit
KD-7X Main body, 250mm Blade, Spanner, Brush, Plastic box packing.
Blade&Accessory
| No.1.2.100 100mm | No.1.2.150 150mm | No.1.2.200 200mm |
| No.1.2.250 250mm | 12” Flat Blade No.9.2 |
| Adaptor No.5.2 | Groover Blade No.G20 G27 G34 |
| Sled(20-160mm)No.5.1 | Sculpture Blade Holder No.5.21 | Cutting Guider No.5.3 |
